Product Description

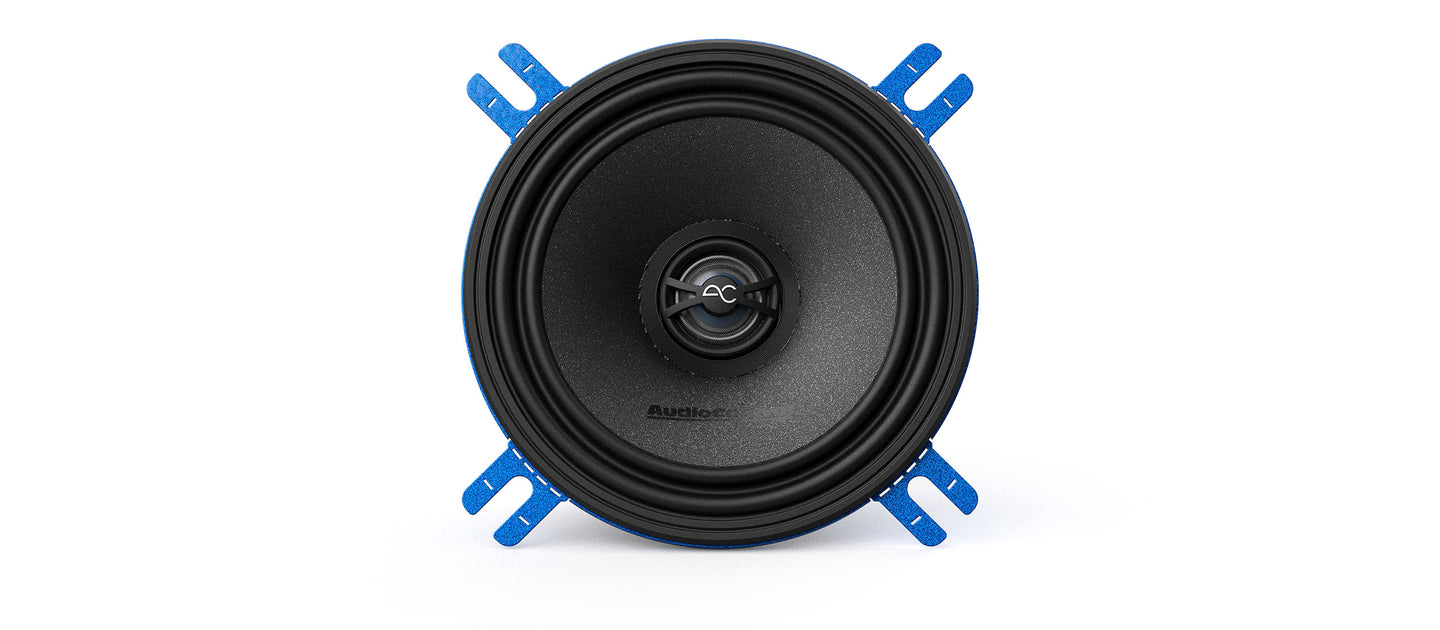

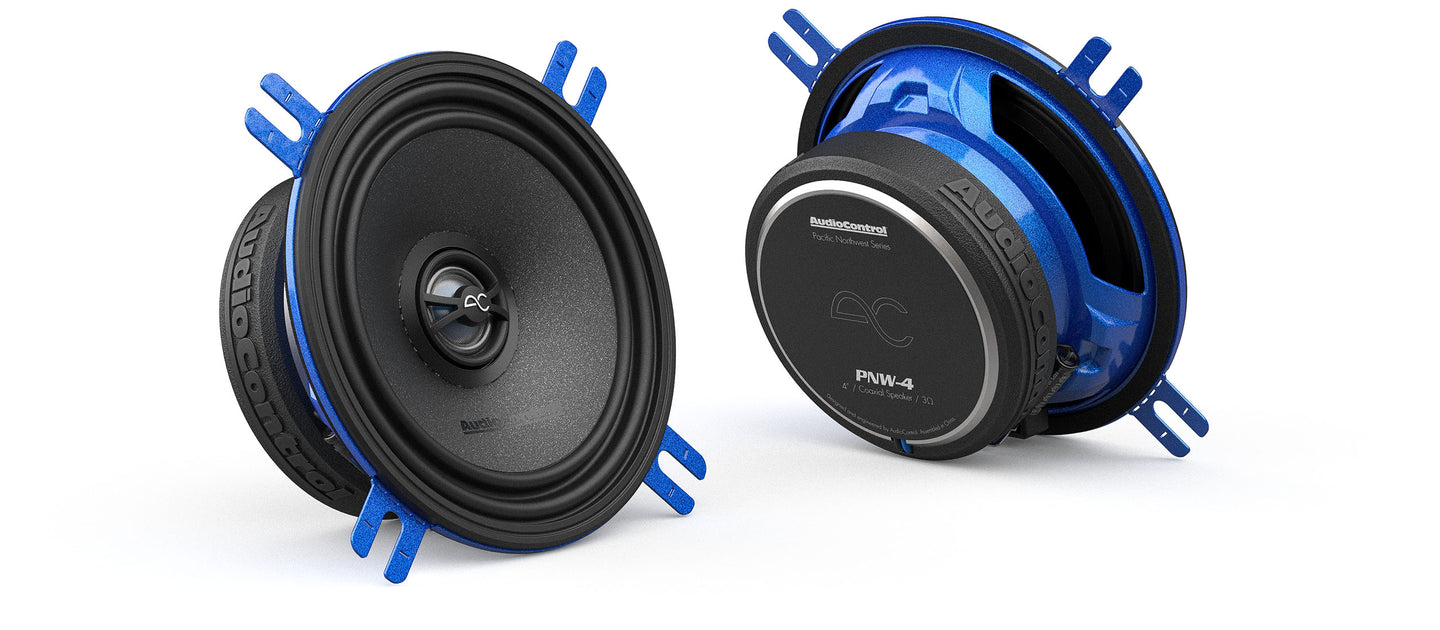

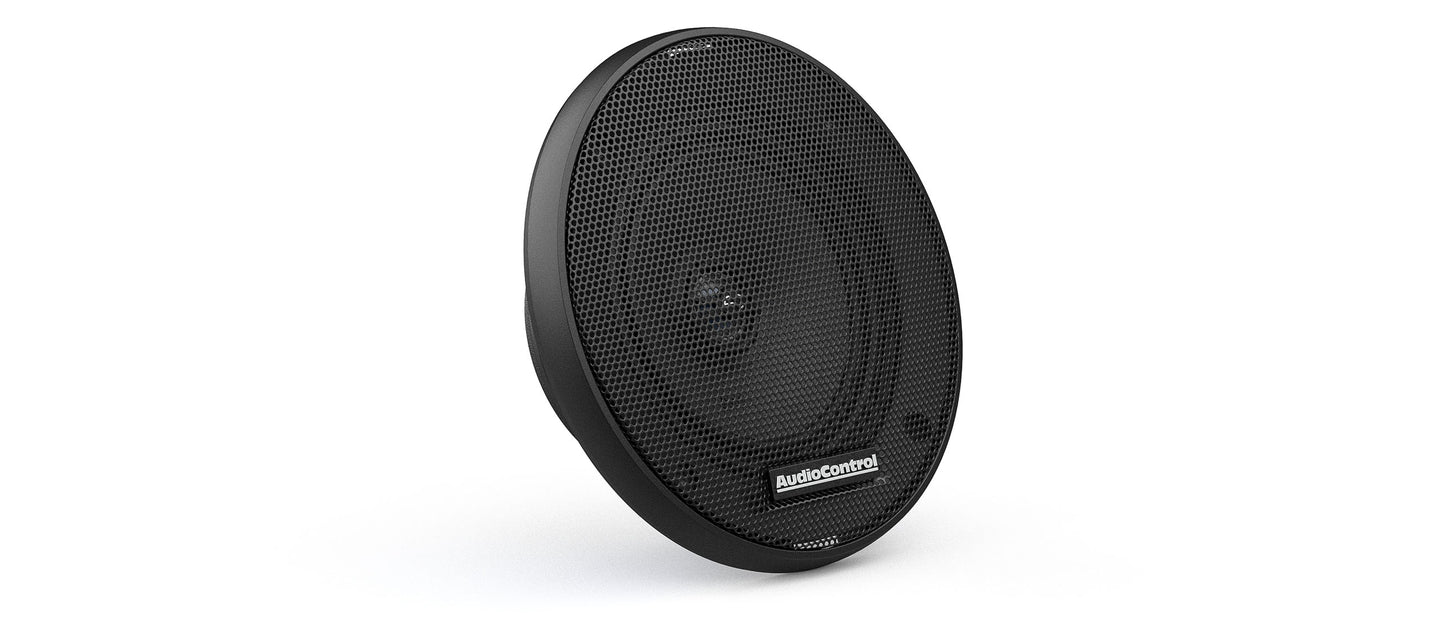

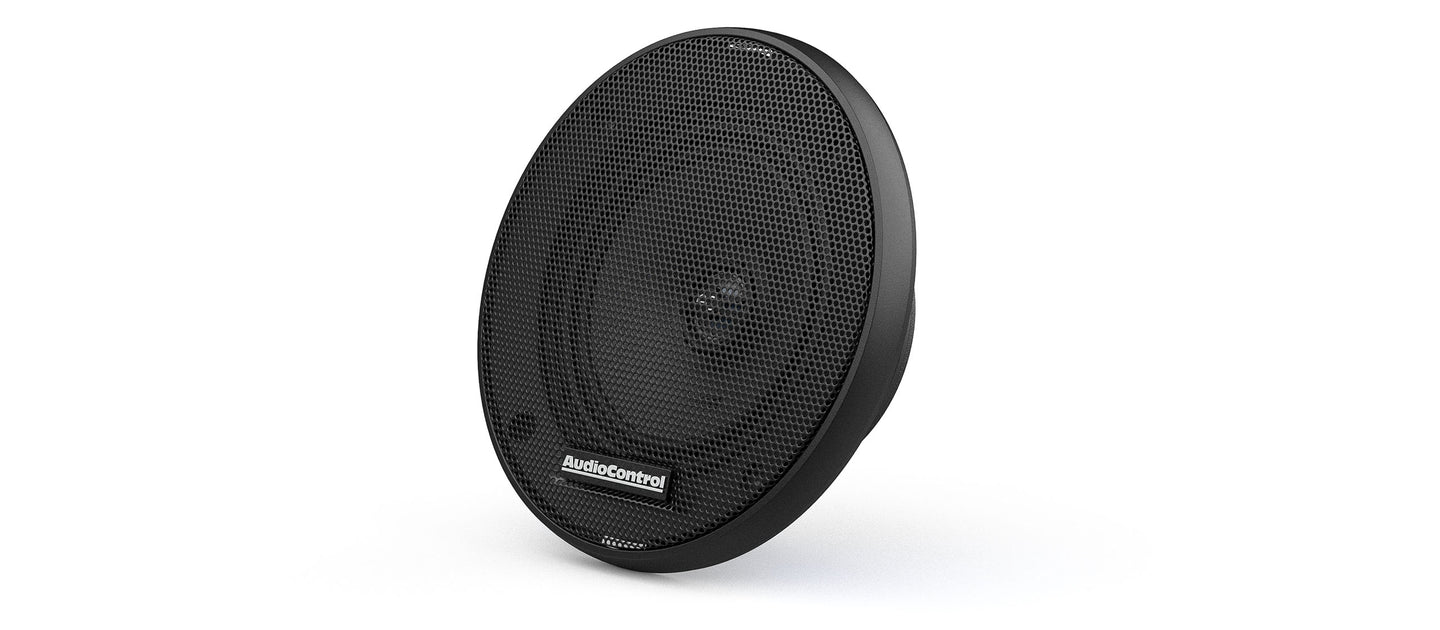

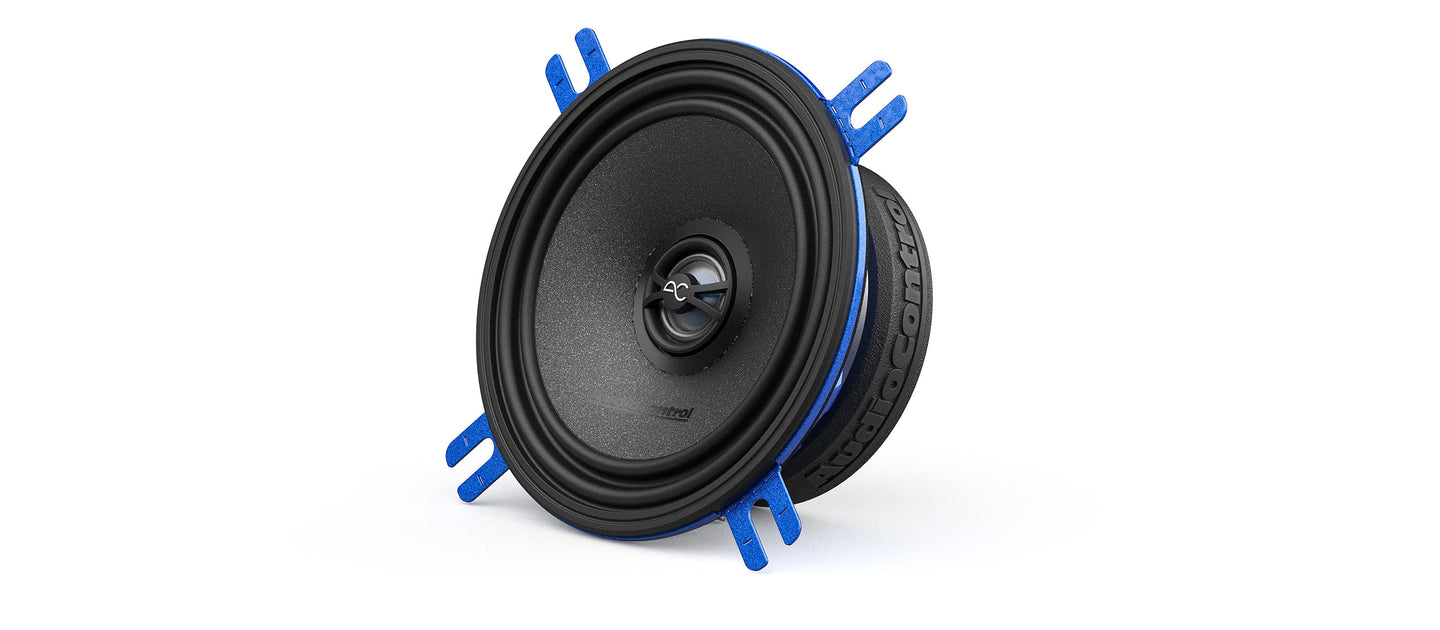

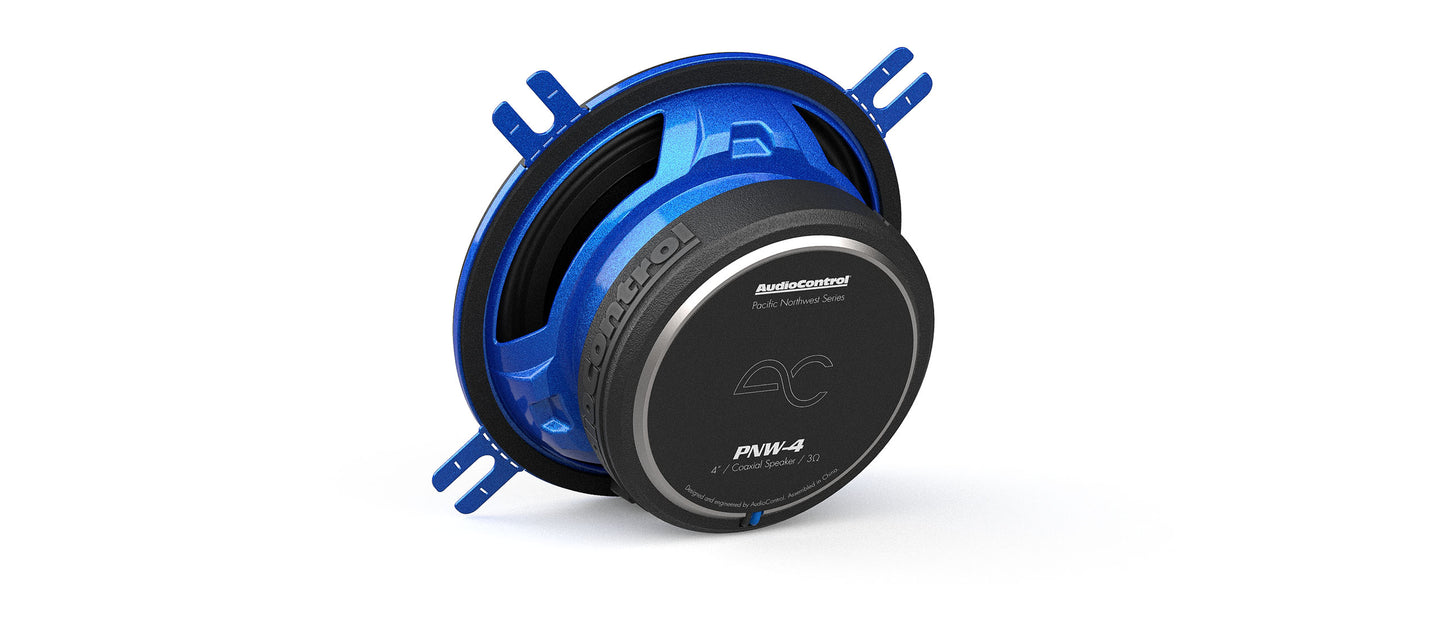

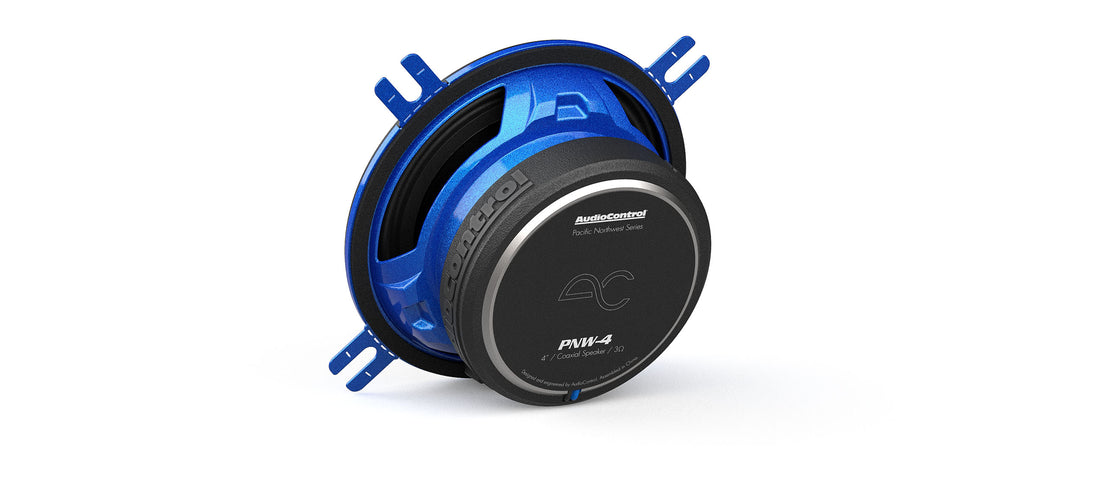

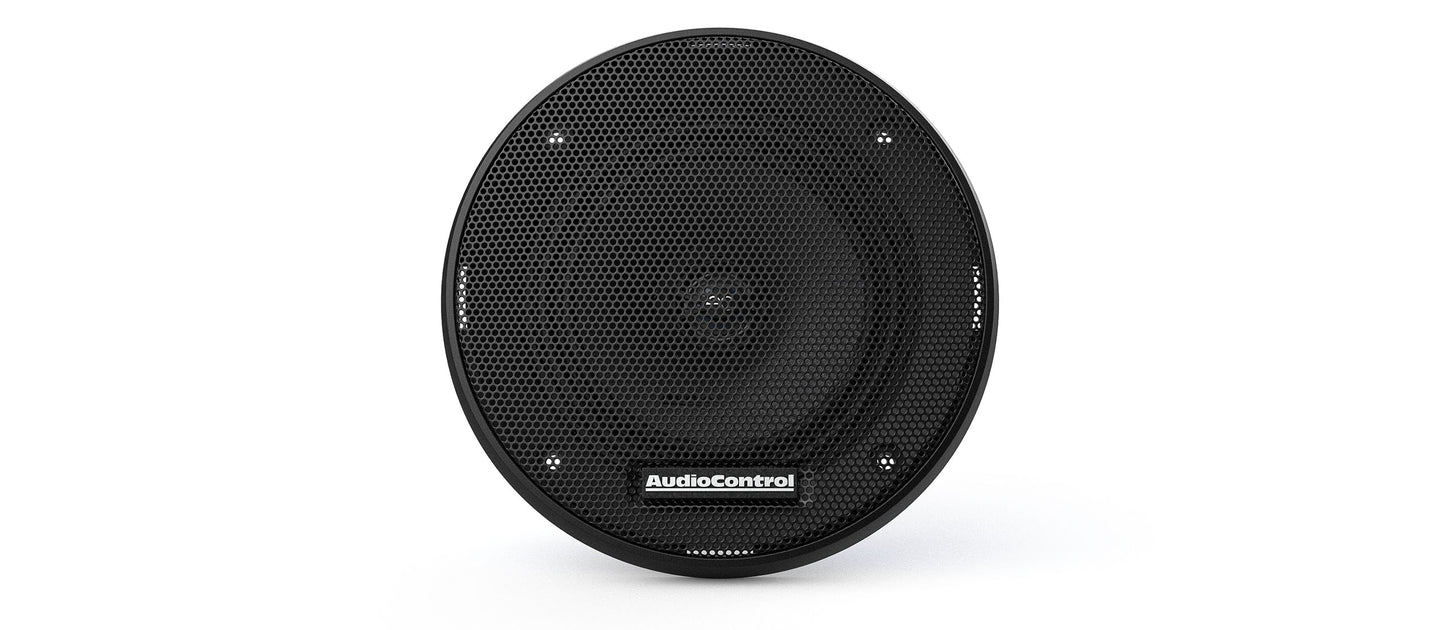

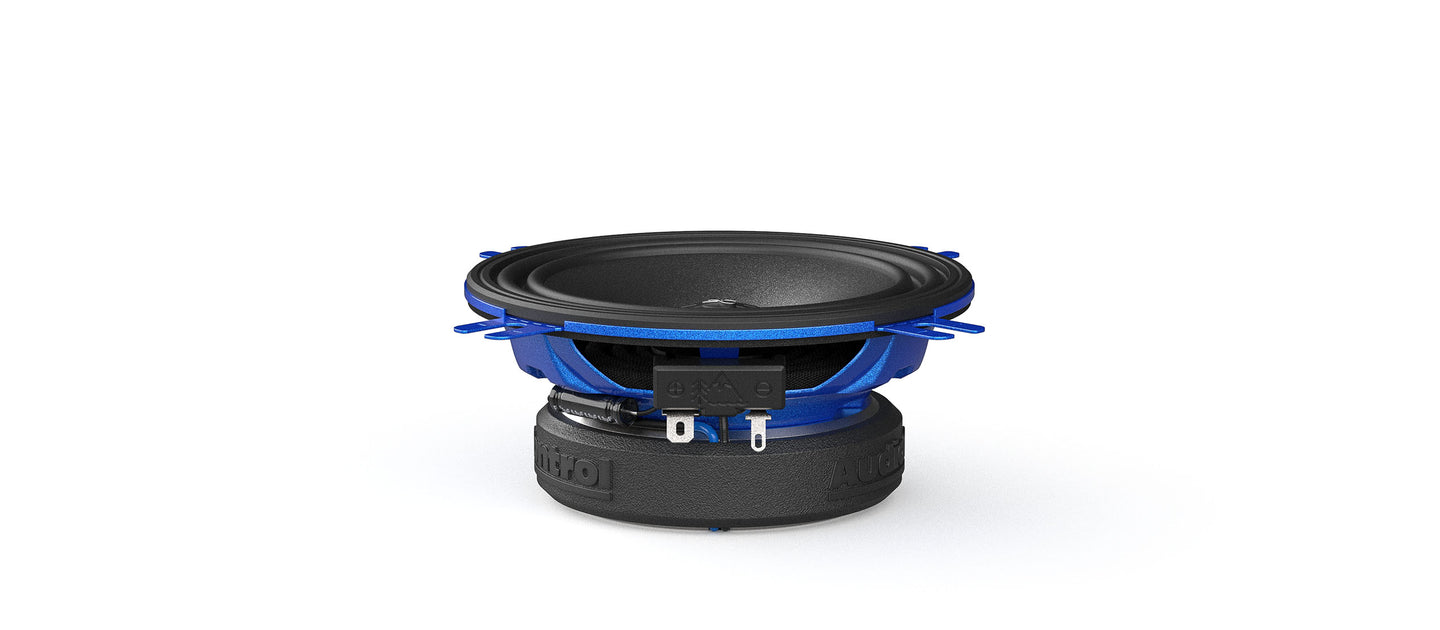

PNW SERIES 4″ HIGH-FIDELITY COAXIAL SPEAKERS
FEATURES
- Edge-enhanced steel frame for added structural strength
- Black anodized voice coil former for superior heat dissipation
- Linear double-roll surround for precision cone movement
- Complex FEA-designed high-efficiency motor
- Rigid poly mica-coated cone for optimized sound reproduction
- Rear dampened hybrid silk dome tweeter for extended frequency response
- Concentric point source design for a seamless transition from midrange to tweeter
- Sonic diffuser and radiant collar for better off-axis frequency response
- High-quality mounting hardware included
SPECIFICATIONS
Crossover Type Butterworth
DC Resistance (Re). 2.6 ohms
Filter Type HP
System Frequency (Fs) Response 75-20k Hz
XO Frequency 5900 Hz
Slope (Octave) -6 dB
Midrange Voice Coil Diameter. 25 mm
IN THE BOX:
PNW-4, Manual, Warranty
DIMENSIONS
- Overall Diameter (w/o Grille): 5.23 in/ 133 mm
- Cut Out Diameter: 3.60 in/ 91.5 mm
- Mounting Depth: 1.66 in/ 42.2 mm
- Height (w/o Grille): 0.16 in / 4.1 mm
- Height (w/ Grille): 0.64 in / 16.5 mm
- Motor Diameter (w/ Cover): 2.96 in / 75.4 mm
- Grille Overall Diameter: 5.40 in / 137 mm
