Product Description

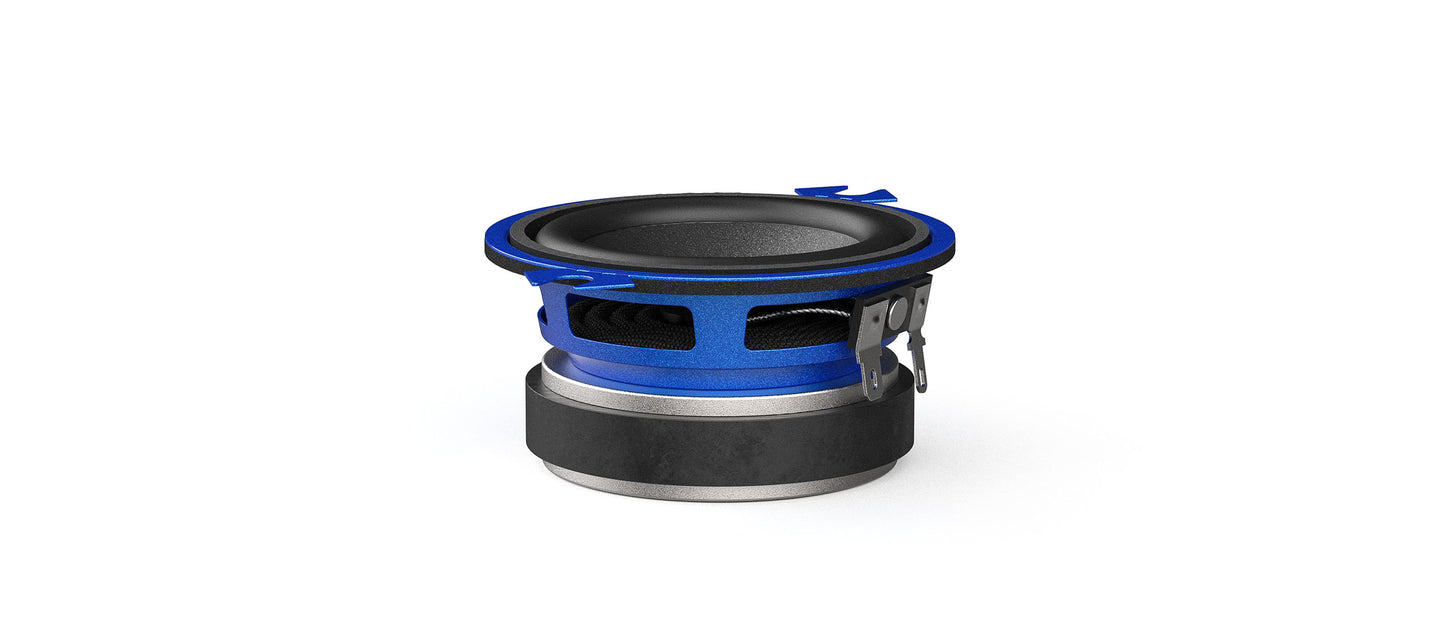

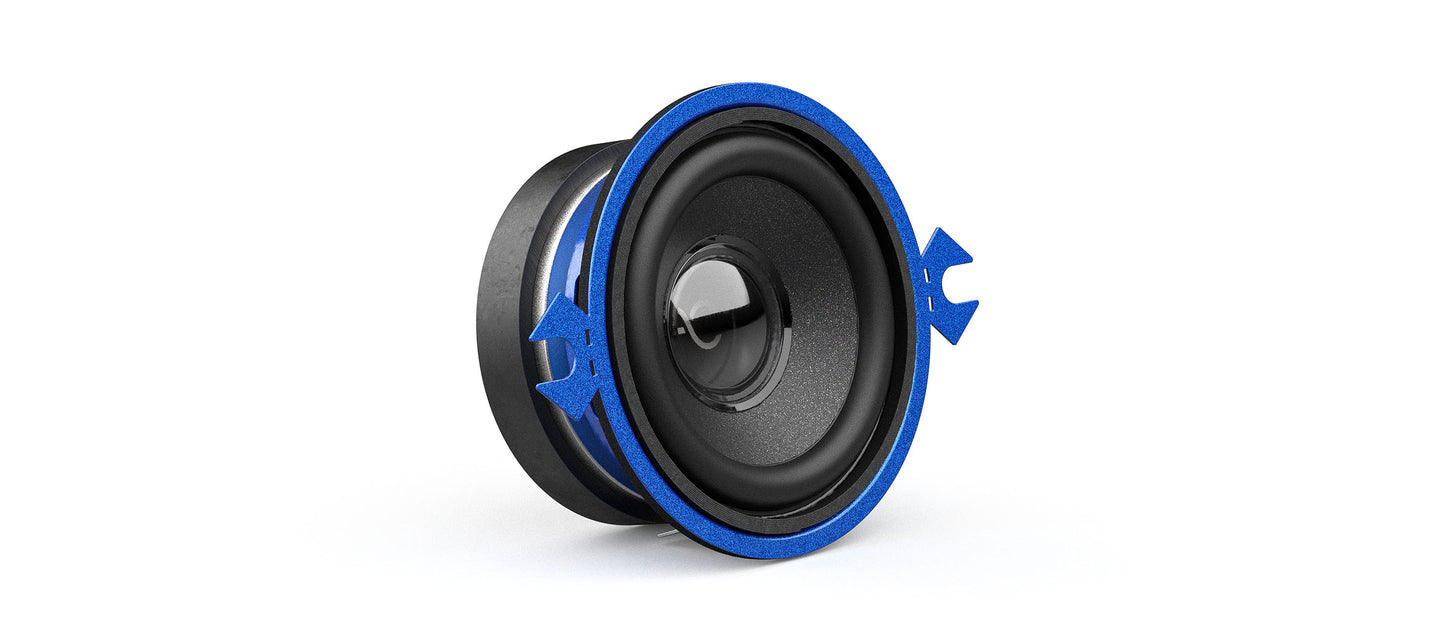

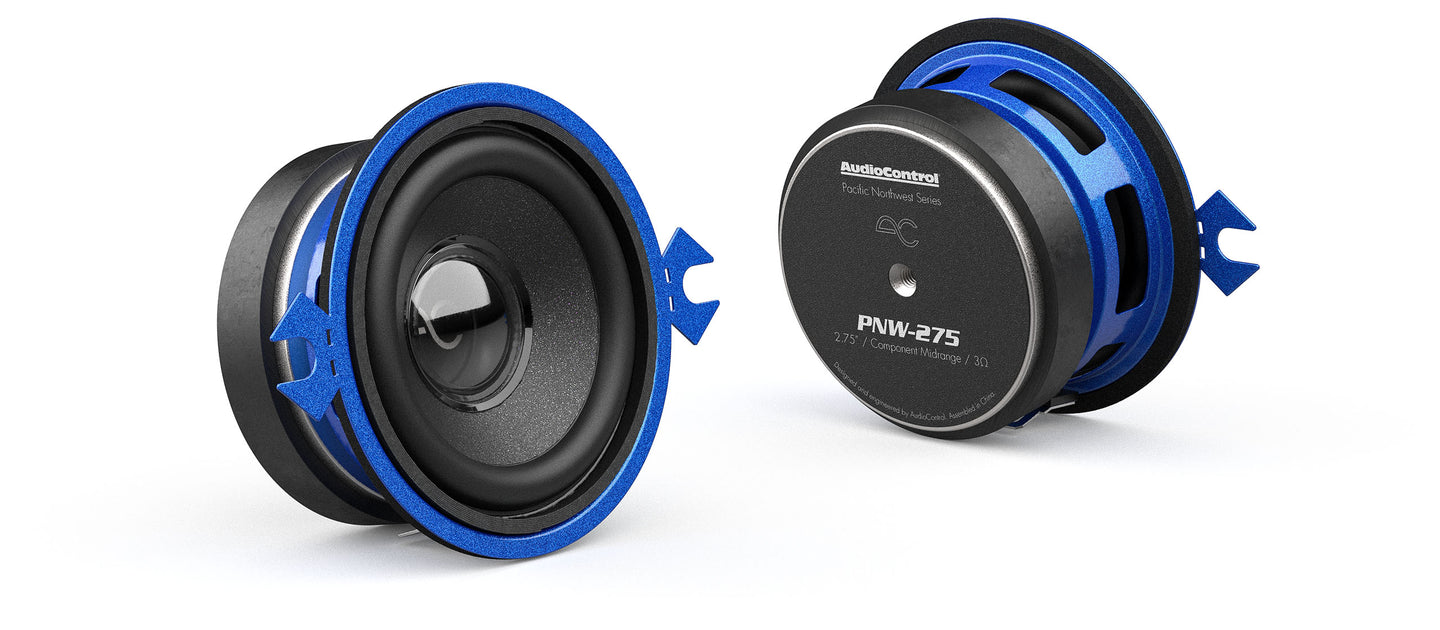

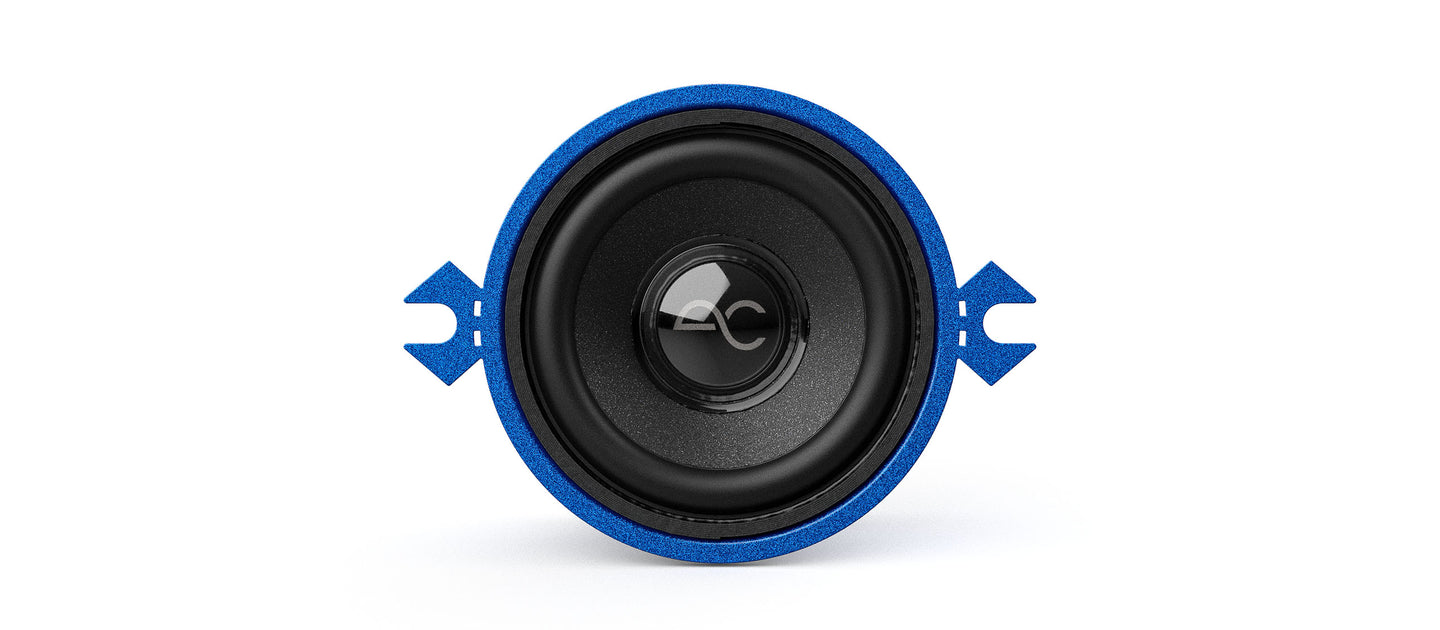

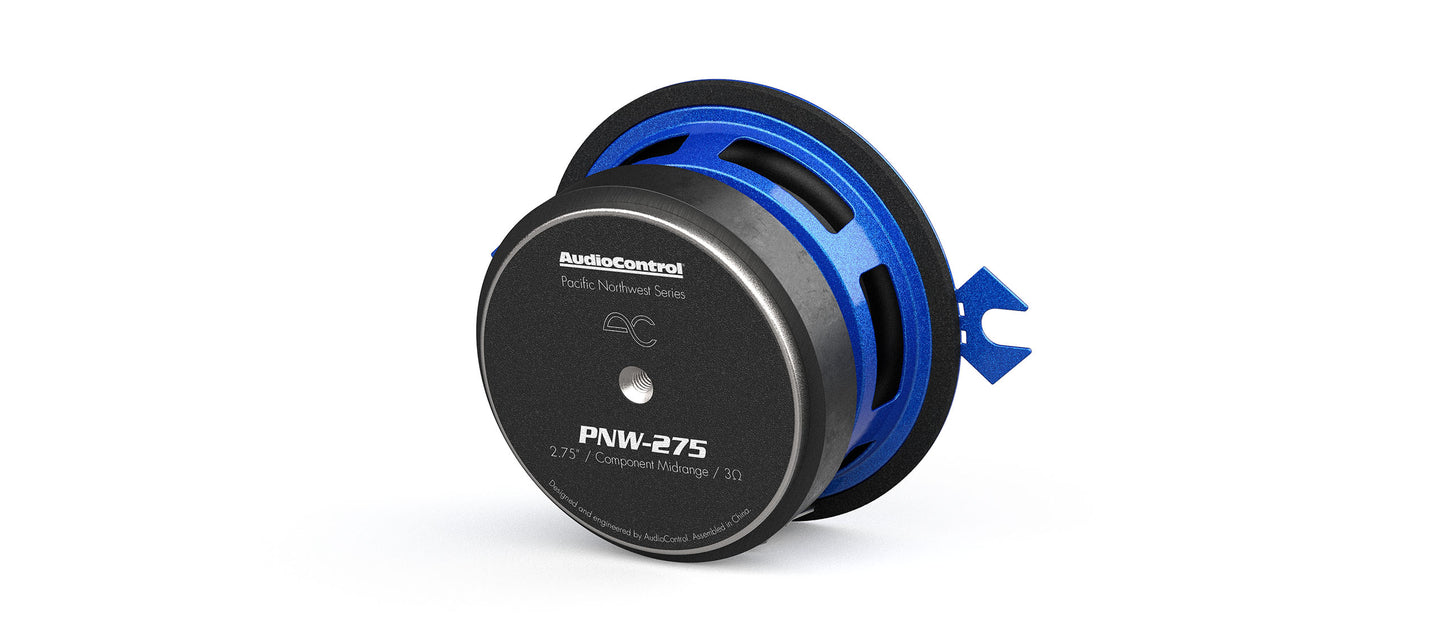

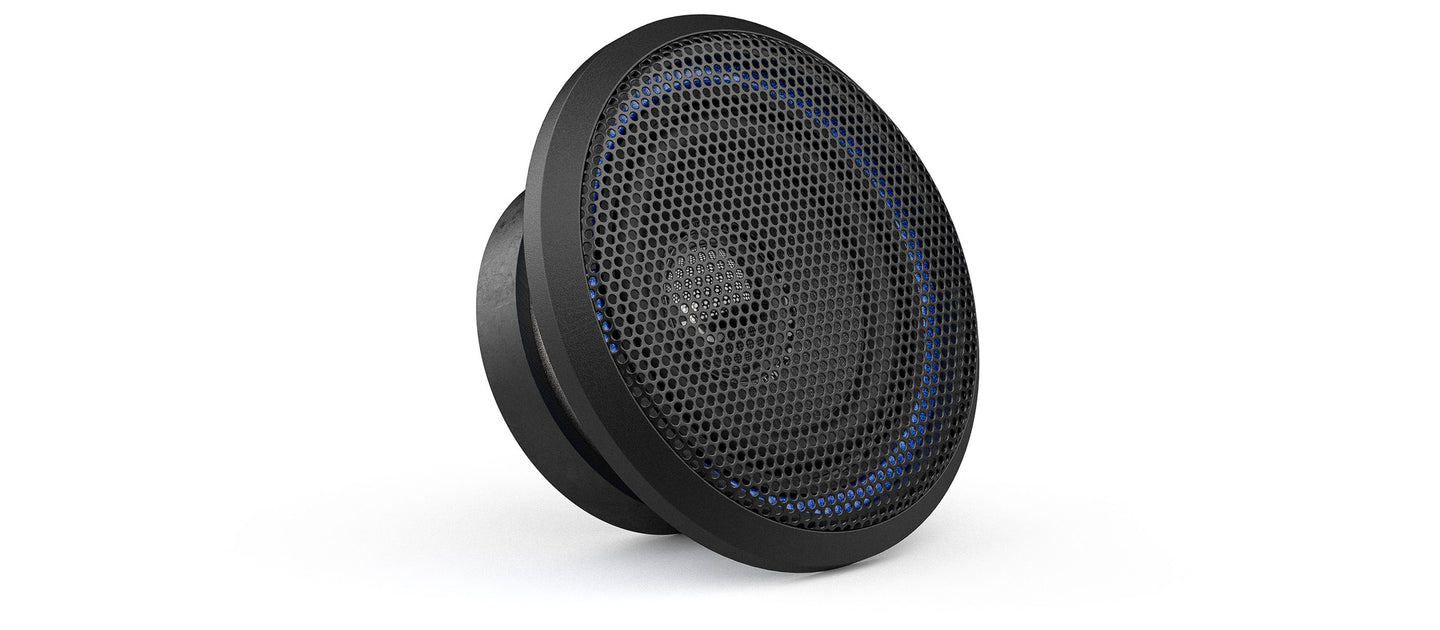

PNW SERIES 2.75″ COMPONENT MIDRANGE SPEAKERS
FEATURES
- Edge-enhanced steel frame for added structural strength
- Black anodized voice coil former for superior heat dissipation
- Linear surround for precision cone movement
- Complex FEA-designed high-efficiency motor
- Paper fiber matrix cone with mica coating for optimized sound reproduction
- Transparent thermal-polymer dust cap for superior fidelity
- High-quality mounting hardware included
SPECIFICATIONS
Crossover Type Butterworth
DC Resistance (Re). 2.45 ohms
Filter Type HP
System Frequency (Fs) Response 100-20k Hz
XO Frequency 250 Hz
BP Frequency Range 200-4k Hz
Slope (Octave) -6 dB
Midrange Voice Coil Diameter. 20 mm
IN THE BOX:
PNW-275, Manual, Warranty
DIMENSIONS
- Overall Dimensions: 3.74 in/ 95 mm
- Overall Diameter(w/o Metal bracket): 2.83 in / 72 mm
- Cut Out Diameter: 2.63 in/ 67 mm
- Mounting Depth: 1.37 in/ 35 mm
- Mounting Height (w/o Grille): 0.05 in / 1.5 mm
- Mounting Height (w/ Grille): 0.48 in / 12.4 mm
- Motor Diameter (w/ Cover): 2.36 in / 60 mm
- Grille Overall Diameter: 3.42 in / 87 mm
