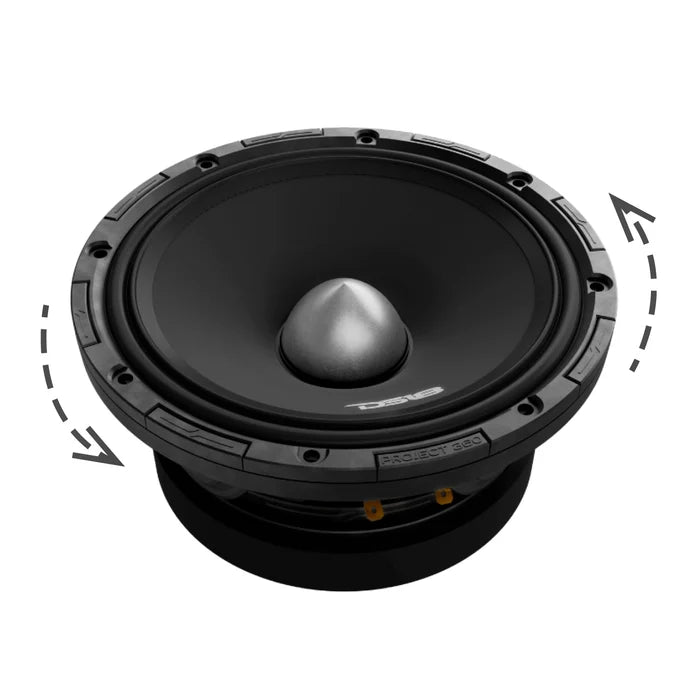

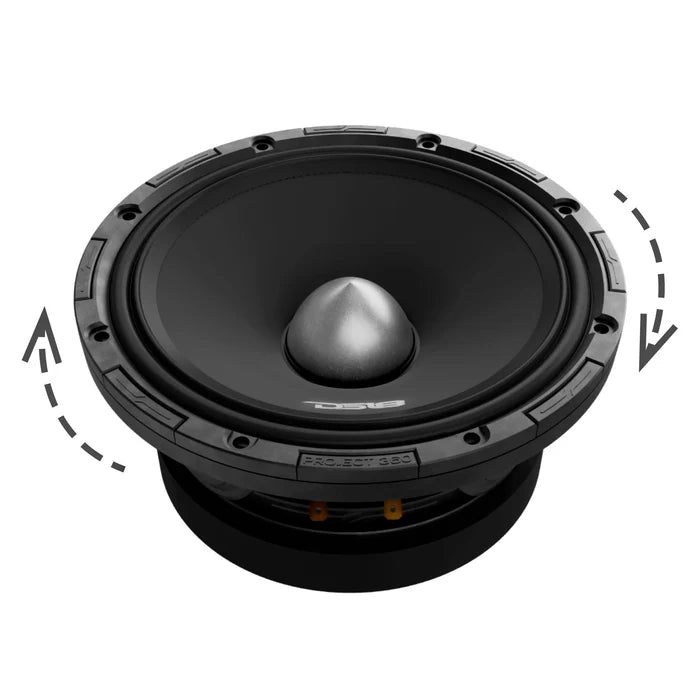

PROJECT360 6.5” High-Sensitivity Mid-High Loudspeaker with Bullet - 300W RMS 4-Ohm - Rotating Recone Design For Quick Repair

• SPECIFICATIONS
• Nominal Diameter: 6.5" / 152mm
• Nominal Impedance: 4 Ohms
• RMS Power Handling: 300 W
• MAX Power Handling: 600 W
• Sensitivity (1w/1m): 98 dB
• Frequency Response: 100Hz – 17kHz
• Recommended High-Pass Crossover: 140 Hz
• Sold as: Single Unit
• Grill Included: No
• Demodulating Rings: Yes
• Improved Heat Dissipation: Yes
• Cone Shape: Curvilinear
• Speaker Terminals: Spade

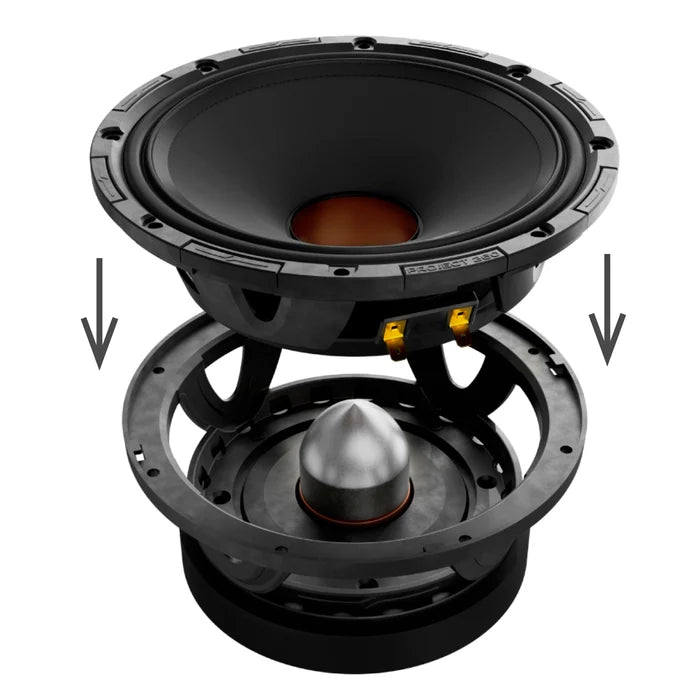

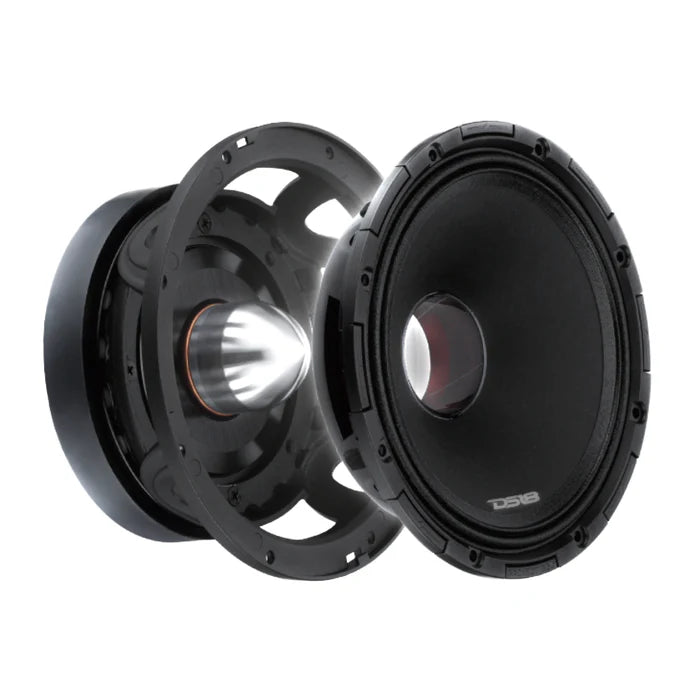

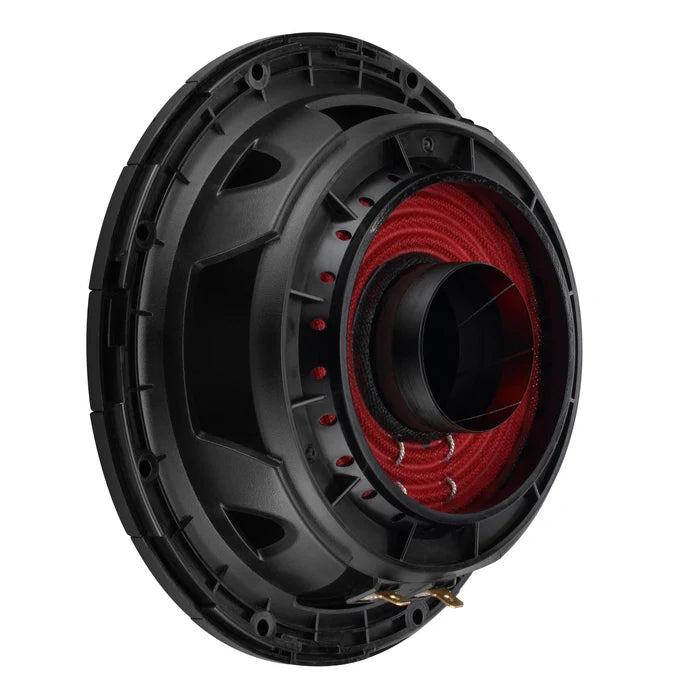

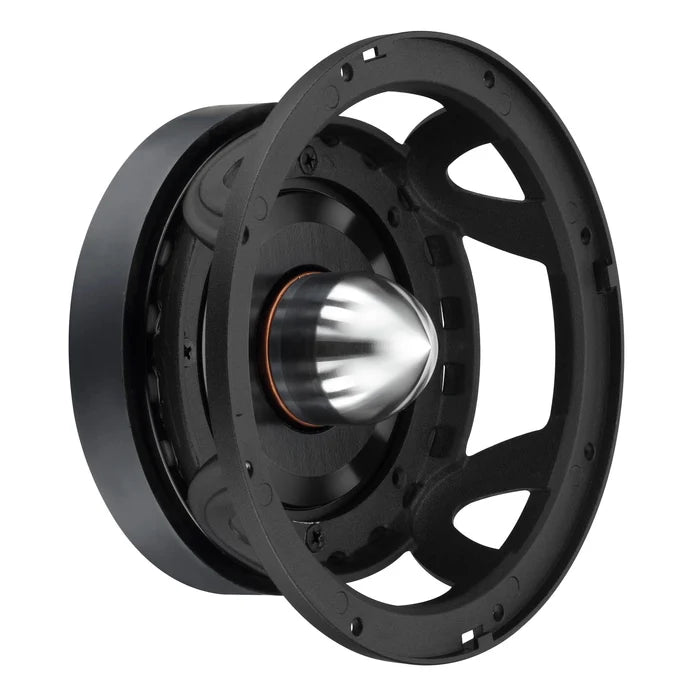

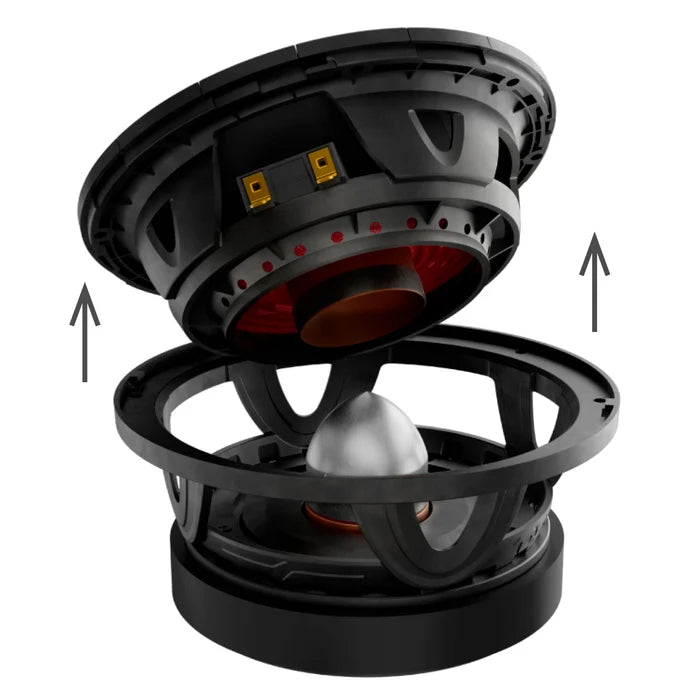

• Easy Recone Design: Yes

• MOTOR
• Voice Coil Diameter: 1.75" / 44.5mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Cone Material: Paper
• Dust Cap Material: Paper
• Surround Material: Cloth
• Spider Diameter: 4" / 102mm
• Leads Connection Type: Round Crossed
• Basket Material: Aluminum
• Basket Color / Finish: Black
• Magnet Material: Ferrite
• Magnet Weight: 48 oz
• Bullet Material: CNC Aluminum
• Bullet Color: Silver

• THIELE & SMALL PARAMETERS
• Equivalent Volume: 1.32L / 0.046ft3
• Excursion (one way): 0.3 mm
• Free Air Resonance: 189 Hz
• Mechanical Factor: 5.915
• Electrical Factor: 0.637
• Total Factor: 0.575
• Moving Mass: 13.305g
• Mechanical Compliance: 0.034 mm/N
• BL Factor: 9.495
• Voice Coil Inductance: 0.040 mH
• Cone Area: 176.71 cm2
• DC Resistance: 2.9 Ohms

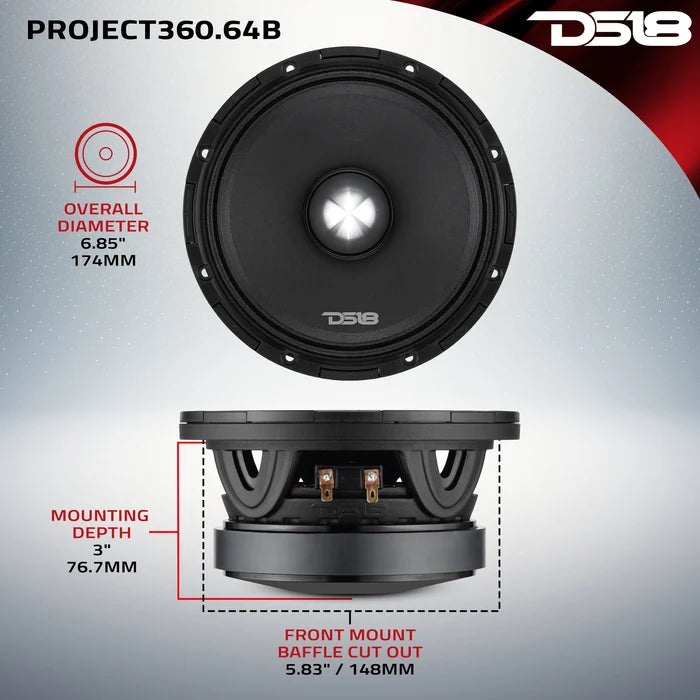

• MEASUREMENT
• Overall Diameter: 6.85" / 174mm
• Overall Depth: 3.57" / 90.6mm
• Front Mount Baffle Cutout: 5.83" / 148mm
• Mounting Depth: 3" / 76.7mm
• Motor Diameter: 5.5" / 140mm
